N-SERIES
Overview

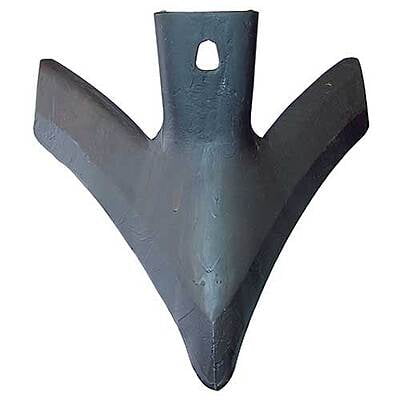

The N‑Series category groups replacement tillage sweeps and the associated hardware used on cultivators and shanks that use Nichols‑style clips. These are wear components made for aggressive soil cutting and are commonly offered in knock‑on and bolt‑on styles with choice of thickness for different soil conditions.
What to look for when choosing

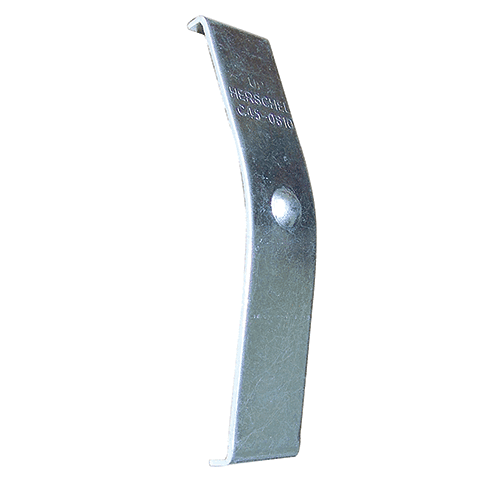

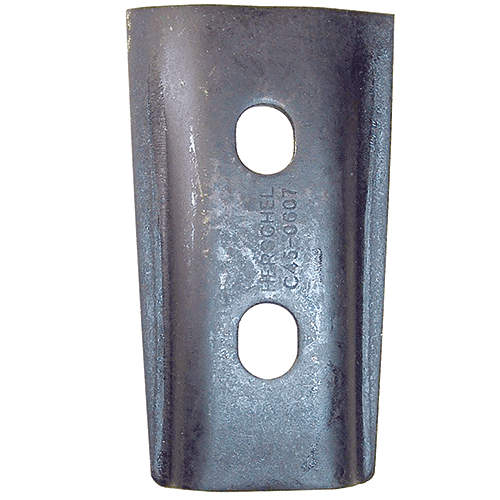

- Clip style and spacing: N‑Series sweeps are designed to work with Nichols‑style clips — verify clip spacing on your toolbar (example part C45‑0607 is shown as 7/16" hex, 1‑3/4" spacing, 47° in supplier catalogs).
- Knock‑on vs bolt‑on: Knock‑on points slide onto a clip and are quick to replace; bolt‑on sweeps fasten with a bolt and nut and are often used where more secure attachment is needed.
- Thickness & size: Common thicknesses are 1/4" and 5/16"; lengths listed in supplier catalogs include 7", 9" and 10". Choose thicker points for heavier soils or more abrasive conditions.
- Material & wear features: Supplier specs reference boron steel, heat treatment, dimpled bolt areas to reduce premature bolt wear, extended nose for penetration and constant‑width wings for consistent cut.
Cropstar sells and supports these replacement parts — before ordering, confirm the bolt hole size, clip spacing and clip type on your machine to ensure correct fitment. If needed, Cropstar can help verify fitment from machine make/model and existing part dimensions.
